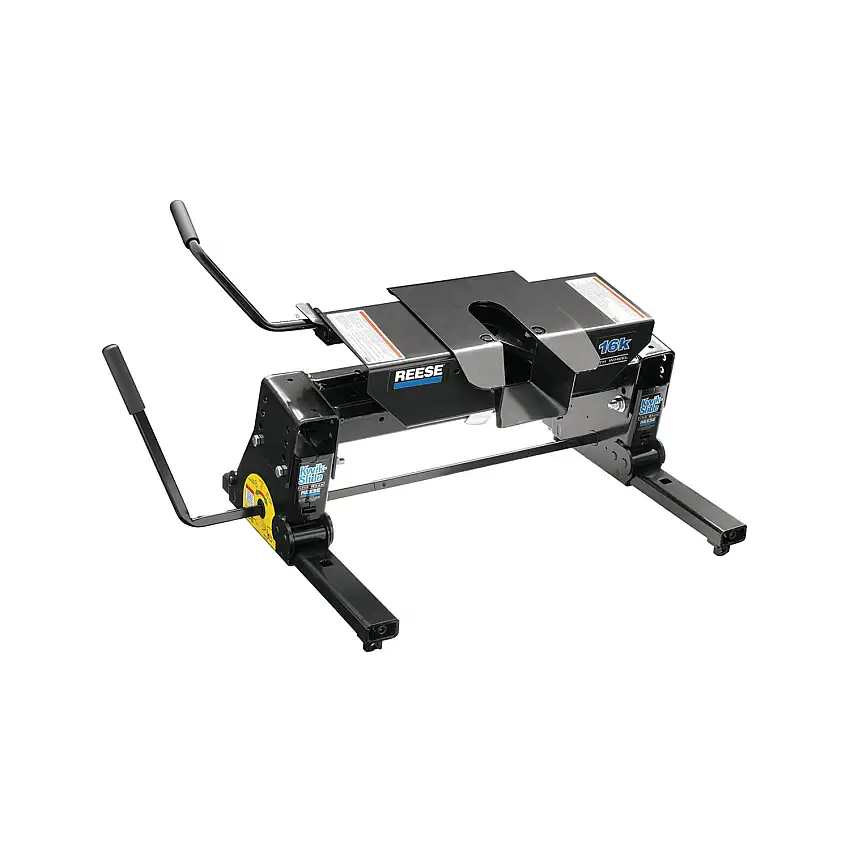

Fifth Wheel Hitch 16,000 lbs. Capacity, Dual Jaw, Complete System, Square Tube Slider
Description
Whether youre a novice at fifth wheel towing or youve been doing it for years, REESE has the gear you need to connect your truck and trailer safely and securely. Designed with state-of-the-art equipment by top-of-the-line engineers, REESEs 16K fifth wheel hitches are built to last! Featuring wide-stance one-piece legs, a dual jaw locking system, side-to-side pivot action to better accommodate hook-ups on uneven ground, quick installation, and strong performance while on the road. When youre done towing, REESEs fifth wheel hitches are easy to remove as well, giving you full access to the bed of your truck in no time. So tow with the confidence that only REESE can provide and make the journey as enjoyable as the destination.
- 16,000 lbs. Capacity; 4,000 lbs. pin weight capacity
- Two-jaw locking system
- Fore-and-aft and side-to-side 4-5 degree pivot
- Locking jaw handle
- Vertically adjusts from 14-3/4″ to 17″
- Wide stance one-piece legs for improved stability
- Requires rails & installation kit (sold separately)
- Limited lifetime warranty
Specifications
| BRAND: | REESE |
| PART NUMBER: | 30051 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 158 LBS |
| CAPACITY: | 16,000 LBS. |
| PIN WEIGHT CAPACITY: | 4,000 LBS. |
| GROSS TOWING WEIGHT: | 16,000 LBS. |
| BASE LENGTH: | 26.12 IN. |
| BASE WIDTH: | 25.89 IN. |
| BASE HEIGHT: | 16.7 IN. |
| VERTICAL ADJUSTMENT: | 14.75 IN. TO 17 IN. |
| WELDING REQUIRED: | NO |
| LOCKABLE: | YES |
| WIRING HARNESS INCLUDED: | NO |
| JAW TYPE: | DOUBLE |
| FORE AND AFT PIVOT: | 15 DEGREE |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | NO |
| MOUNTING HOLE QUANTITY: | 4 |
| HITCH TYPE: | GLIDING |
| MATERIAL: | STEEL |
| SIDE TO SIDE PIVOT: | 4 degrees to 5 degrees |
| BOLT GRADE: | SAE 8 |
| COLOR: | BLACK |
