Description

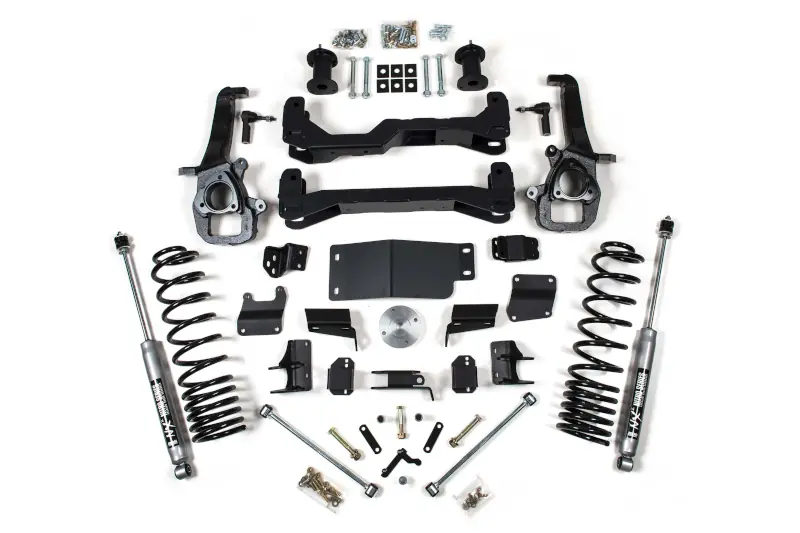

Ram 4″ BDS Lift Kit w/ NX2 Rear Shocks Features:
- For OEM 17″ to 20″ wheels without Airride
- Added clearance for larger tire wheel combinations
- 3″ ProRide dual rate coil springs for lifted and leveled stance
- Designed with high quality components for durability
- Suspension lift kits come with installation hardware
- Sold as a complete kit for front & rear of your truck
- Greater on and off-road handling
- Comes with the NX2 Series Shocks
- Ductile Iron replacement steering knuckles
- BDS Suspension Lift Kit Warranty
Greater Tire Clearance with the 4″ BDS Lift Kit
If you’re looking to add greater tire clearance while improving overall handling and drivability, the 4″ BDS Lift Kit is a great way to go! Along with enhanced suspension this 4″ lift kit comes packed with additional components that will have your on and off-road driving feel new and improved. Along with a full 4″ of height gain, the BDS lift kit also comes with heavy-duty steel, high-clearance designed crossmembers that will have you driving through off-road obstacles with little issue. Additionally, these sturdy crossmembers reposition the lower control arms for better operating angles and a BDS badge to show other truck enthusiasts that your ride stands with some of the best in the business.
New and Improved Steering Knuckles and 4″ Height Gain with Front Strut Spacers.
When comparing your factory or conventional aftermarket steering knuckles to BDS, its clear to see that BDS steering knuckles simply outclasses its competitors. With a taller and wider overall build, the new steering knuckles reposition your upper control arms, tie rods, and your CV joints to ensure factory-ride quality and smooth driving. Ram 1500 owners can rest assured that these new knuckles will not be wearing out anytime soon given its heavy-duty steel construction and its meticulous design. The 4″ of elevated height is achieved by using a high-grade steel front spacer that conforms tightly to your front struts, Made using the same high-grade steel you’d come to expect from BDS, Ram truck owners can drive assured that their front strut spacers can withstand all kinds of use and abuse.
Relocation Brackets and the NX2 Rear Shocks
A big differentiator between a BDS lift kit from your standard lift kit comes in the form of relocation brackets for all components of your Ram 1500’s driveline. Everything from your differentials to your sway bars are provided with relocation brackets in order to mimic factory operating angles and conditions. In turn, you are treated to a Ram 1500 that drives as though it is fresh off the lot and makes your street driving experience like no other. The kit comes equipped with the NX2 Rear Shocks which sport an impressive 10-stage velocity sensitive valving for quicker dampening performance and control. With all elements combined, Ram 1500 owners equipped with the 4″ BDS lift kits are granted a 4″ lift for ground clearance, smoother driving, dependable components, and a rugged style that will turn a few heads.
Tire/Wheel Fitment Notes:
- 35″x12.50″ w/18×9 and 5″ back spacing
- 35″x12.50″ w/20×9 and 5″ back spacing
- Stock w/20″ & 22″ stock and stock back spacing
- Trimming may be required
- Stock 18″ wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size
- Designed for Ram 1500’s without Airride
Fitment:
- 2019 – 2024 New Body Style Ram 1500
- Fits 4WD Models only
- Does not fit Diesel Models
- Will NOT fit models equipped with the Thermal Axle option.
- Vehicles equipped with the Off-Road Group Package require the Ram 1500 Rebel 4in kit to achieve correct ride height
