Description

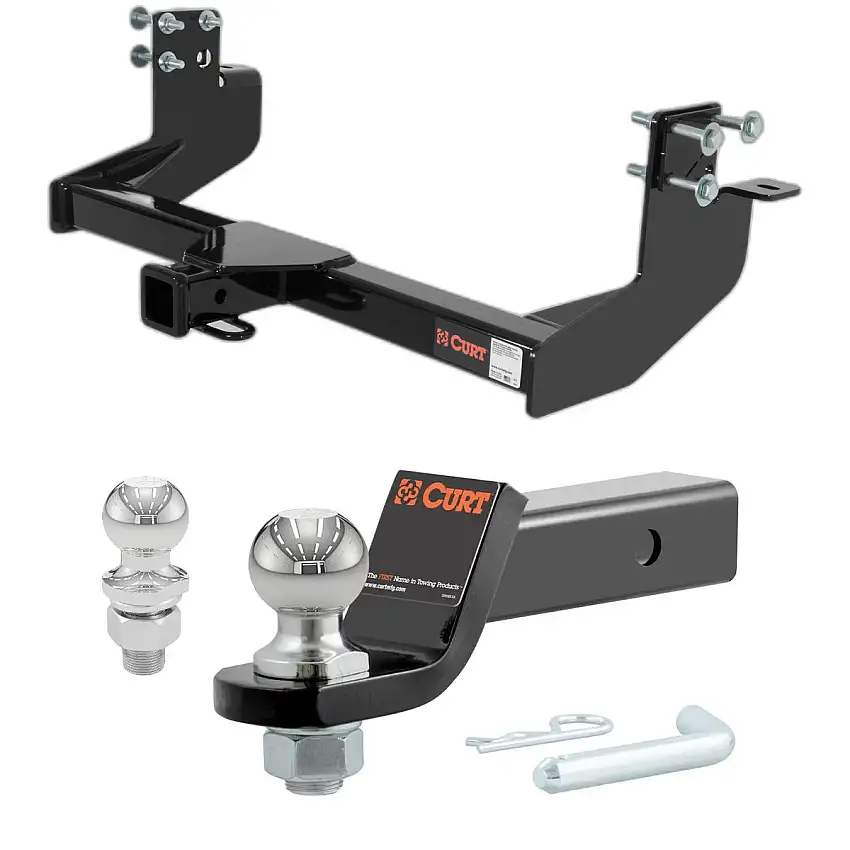

This fits: 2003-2006 Dodge Sprinter 2500 140 In. Wheel Base with Single Rear Wheels
Specs:
- Main Body Shape: Square
- Receiver Tube Size: 2 IN
- Weight Carrying Capacity: 10,000 LB
- Tongue Weight: 1,000 LB
- Visibility: Exposed
- Drilling Required: Yes
- Installation Difficulty: Novice
- Installation Time: 45
- Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Application Notes:
- Main body exposed
- 158″ WB models require brace removal 118″ WB models require spare tire relocation
Features:
- Rated to 10,000 lbs. gross trailer weight and 1,000 lbs. tongue weight
- Compatible with weight distribution hitch (12,000 lbs. WD / 1,200 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Description:
Whatever the next item is on your to-do list — whether it’s arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset — CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Dodge Sprinter 2500 and 3500 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2″ receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety.
Notes:
158″ wheelbase requires brace removal; 118″ wheelbase requires spare tire relocation
Trailer hitch weight ratings are limited to vehicle manufacturer’s stated capacities
Includes installation hardware
Partial List of Years:
2003, 2004, 2005, 2006 Dodge Sprinter 2500 140 In. Wheel Base with Single Rear Wheels Class 4 Trailer Hitch, 2″ Receiver, Select Dodge Sprinter 2500, 3500
